T25-051G-114J

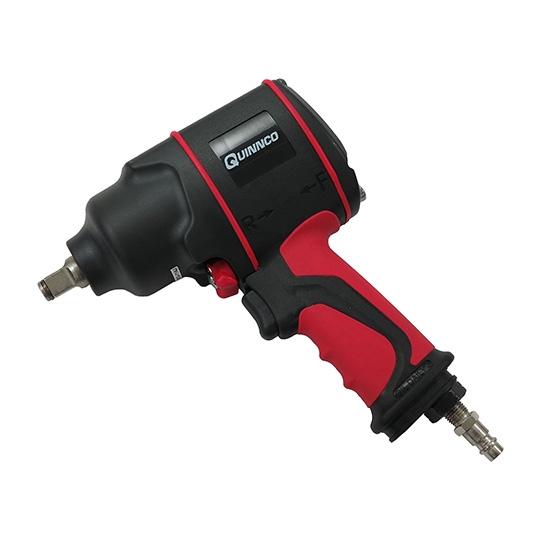

AIR IMPACT WRENCH, COMPOSITE, 1/2" DR
|
IMPACT MECHANISM: TWIN HAMMER
BOLT CAPACITY: 16 MM
WORKING TORQUE: 880 N.m (650 FT-LB)
MAX. TORQUE: 1,220 N.m (900 FT-LB)
FREE SPEED: 9,000 RPM
AIR PRESSURE: 90 PSI (6.2 BAR)
AIR CONSUMPTION: 4.2 CFM (119 L/MIN)
AIR INLET: 1/4"
AIR HOSE: 10 MM
OVERALL LENGTH: 165 MM (6-1/2")
WEIGHT: 2.02 KGS (4.45 LBS)
TOP
BOLT CAPACITY: 16 MM
WORKING TORQUE: 880 N.m (650 FT-LB)
MAX. TORQUE: 1,220 N.m (900 FT-LB)
FREE SPEED: 9,000 RPM
AIR PRESSURE: 90 PSI (6.2 BAR)
AIR CONSUMPTION: 4.2 CFM (119 L/MIN)
AIR INLET: 1/4"
AIR HOSE: 10 MM
OVERALL LENGTH: 165 MM (6-1/2")
WEIGHT: 2.02 KGS (4.45 LBS)
