T20-500MK-043D

HDT IMPACT SOCKET, 1/2" DR., 4-PC

  • DEPENDS ON THE REQUIRED PNEUMATIC WRENCH TORQUE TO USE
  • WITH RUBBER INSERTS
  • DO NOT USE HAND TOOLS
  • USE WITH A 1/2" DR. PNEUMATIC OR POWER IMPACT WRENCH
  • SET UP THE WORKING AIR PRESSURE AT 90 PSI (6.2 BAR, 6.3 KGS/CM, 62PA), AND ENSURE THE POWER DELIVER OF THE IMPACT WRENCH BETWEEN 190 ~ 210NM (140~155FT/LBS). THE OUTPUT OF SOCKETS WILL BE 115 Nm ± 6% (85FT/LBS ± 6%).
  • IF OTHER TORQUE/TORSION REQUIRED, PLEASE REFER TO THE TORQUE/TORSION CHART TO SET UP THE OUTPUT OF THE IMPACT WRENCH AND OBTAIN THE REQUIRED TORQUE/TORSION VALUE
Inquire Now

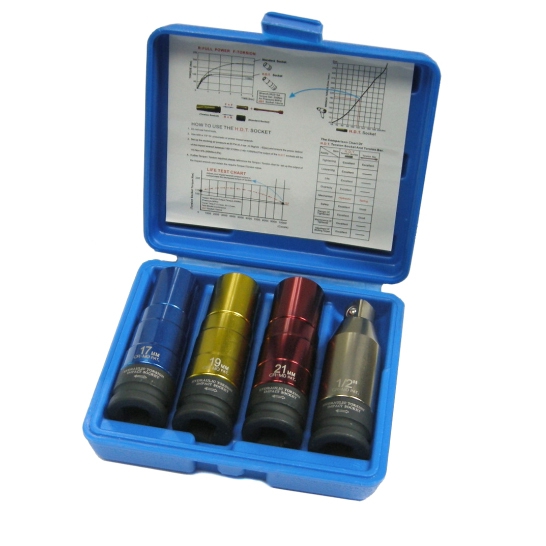

CONTENTS:
3 - HDT SOCKETS W/RUBBER INSERTS: 17-19-21 MM
1 - 1/2" DR. SOCKET ADAPTOR
