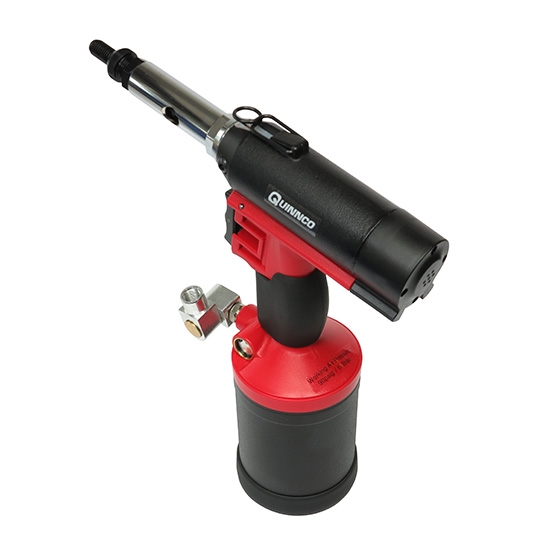

T25-085A-010P

AIR HYDRAULIC SPIN-PULL
RIVET NUT TOOL

  • OVER 6000 LBS TRACTION POWER
  • WEAR-RESISTANT SURFACE EXTENDS TOOL LIFE.
  • LIGHTWEIGHT AND ERGONOMICALLY DESIGNED
  • PRESS LIGHTLY TRIGGER FOR PULLING & SPINNING OUT
  • SPIN-ON, PULL-UP, SPIN-OUT ACTION
  • IT CAN BE SUSPENDED OR HAND-HELD
  • AIR-HYDRAULIC OPERATION
  • HEAVY-DUTY PLASTIC BODY
  • EASY STROKE ADJUSTMENT SCALE TAG
  • QUICK-CHANGE CONNECTOR FOR TIE ROD
  • BI-DIRECTIONAL 360-ROTATION AIR HOSE UNIVERSAL JOINT
  • PRECISE POWERFUL AIR MOTOR EFFICIENT FOR FORWARD AND REVERSE WORK
  • RUBBER GRIP W/SOFT TOUCH FOR EASY OPERATION
Inquire Now

SPECIFICATIONS:
RIVET NUT SIZES: M3-M4-M5-M6-M8-M10-M12
STROKE: 7 MM (0.276")
PULL FORCE (85 PSI): 2724 KGS (6000 LBS)
AIR PRESSURE: 85 ~ 95 PSI (5.9 ~ 6.6 BAR)
AIR CONSUMPTION: 9.2 CFM (260 L/MIN)
TOOL WEIGHT: 2.3 KGS (5.07 LBS)
HEIGHT: 305 MM
LENGTH OF PLACING HEAD: 278.1 MM
BASE: 92.5 MM (DIA.)
